Type-S Integrated Shim Thermoplastics

The innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Each Integrated Shim can be adjusted in discrete 0.5 mm increments, with a total range of 4 mm.

Integrated Shim thermoplastics attach to any Type-S fixation system.

Features

  • Independent shimming at each pin point
  • No need to remove mask to tighten or loosen
  • Increased workflow efficiencies
  • Increased patient comfort
  • Better workflow and instant setup feedback
INTEGRATED SHIM

The innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Each Integrated Shim can be adjusted in discrete 0.5 mm increments, with a total range of 4 mm.

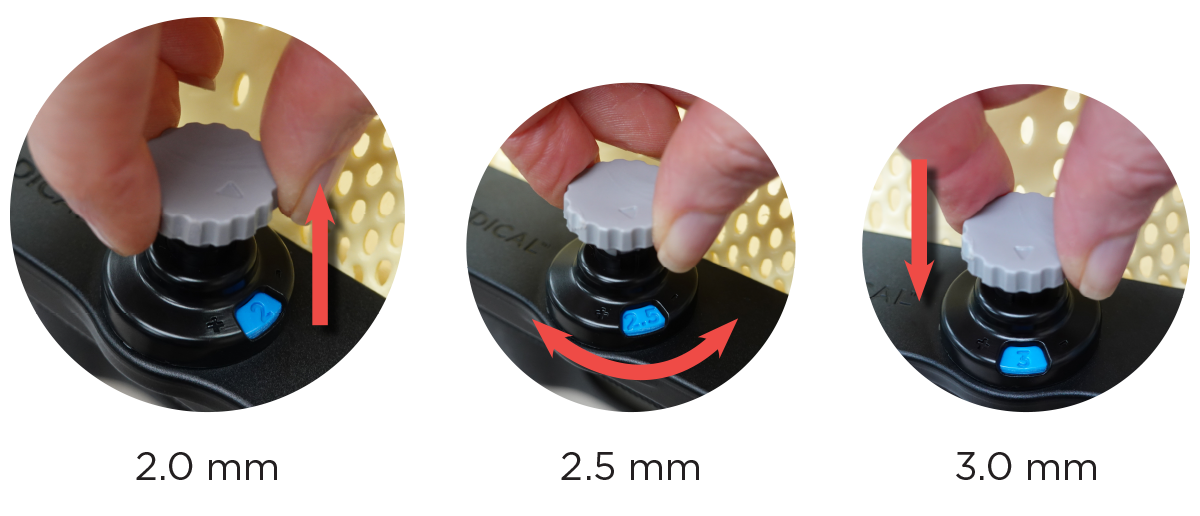

TO ADJUST SHIM HEIGHT
  • Pull up to unlock
  • Rotate to the desired height adjustment
  • Depress to lock

What's the difference between Fibreplast and Aquaplast RT?

Find a Product That Fits Your Needs

Add to QuoteProductDescription
Fibreplast, Variable Perf, Integrated Shim, 3.2 mm (Qty 1/must purchase in multiples of 5)
Fibreplast, Variable Perf, Integrated Shim, 3.2 mm (Qty 1/must purchase in multiples of 5)
Aquaplast RT, Variable Perf, Integrated Shim, 3.2 mm (Qty 1/must purchase in multiples of 5)
Fibreplast, Standard Perf, Integrated Shim, 2.4 mm (Qty 1/must purchase in multiples of 5)
Fibreplast, Micro Perf, Assure Open View, Integrated Shim, Split frame, 3.2 mm (Qty 1/must purchase in multiples of 5) VISION RT COMPATIBLE
Fibreplast, Variable Perf, Assure Open View, Integrated Shim, 3.2 mm (Qty 1/must purchase in multiples of 5) VISION RT COMPATIBLE

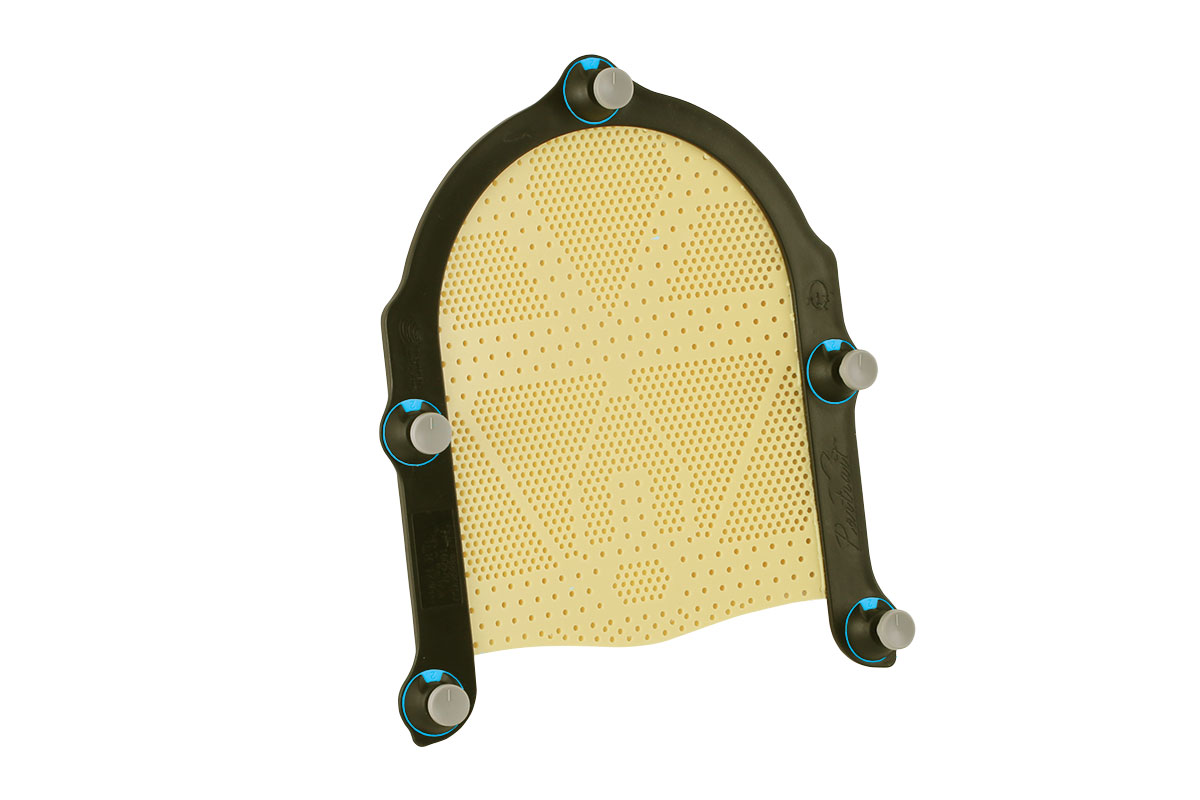

RT-A889KYSD

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Fibreplast Type-S, Head Only, Variable Perf, 3.2 mm

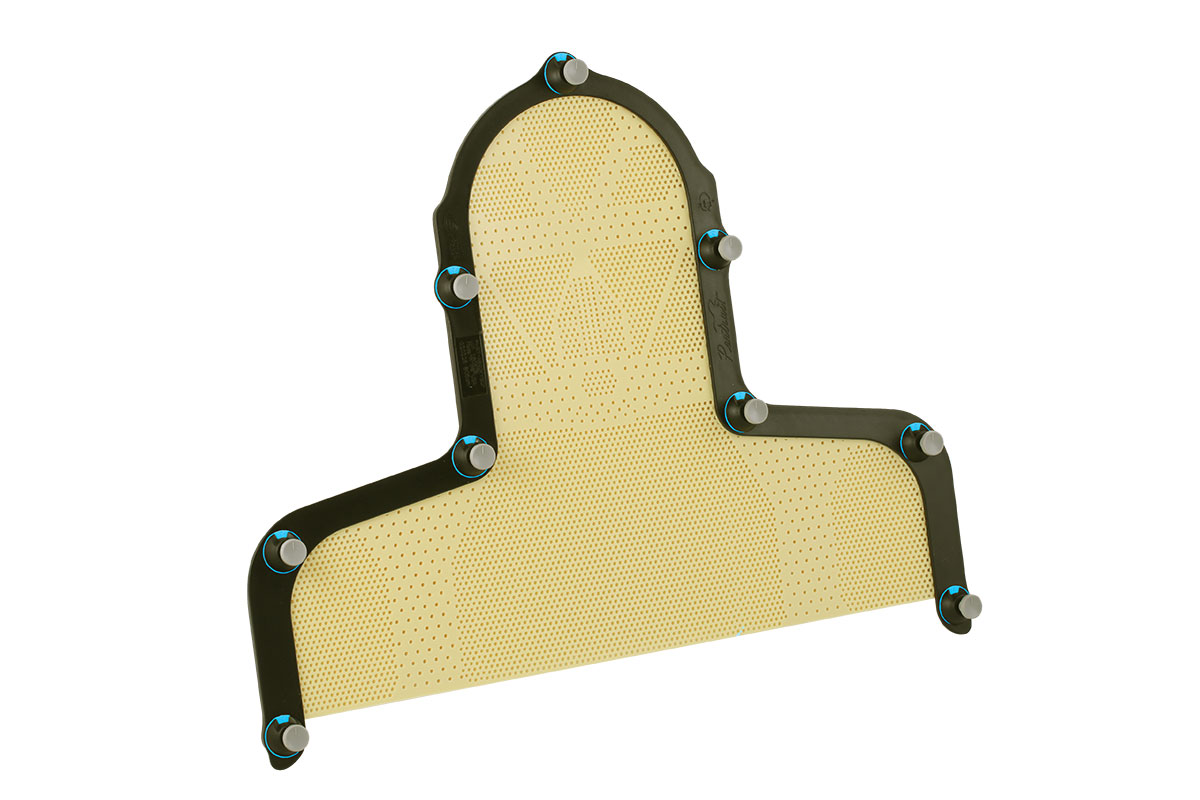

RT-A892KYSD

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Fibreplast, Head & Shoulder, Variable Perf, 3.2 mm

RT-A892YSD

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Aquaplast RT, Head & Shoulder, Variable Perf, 3.2 mm

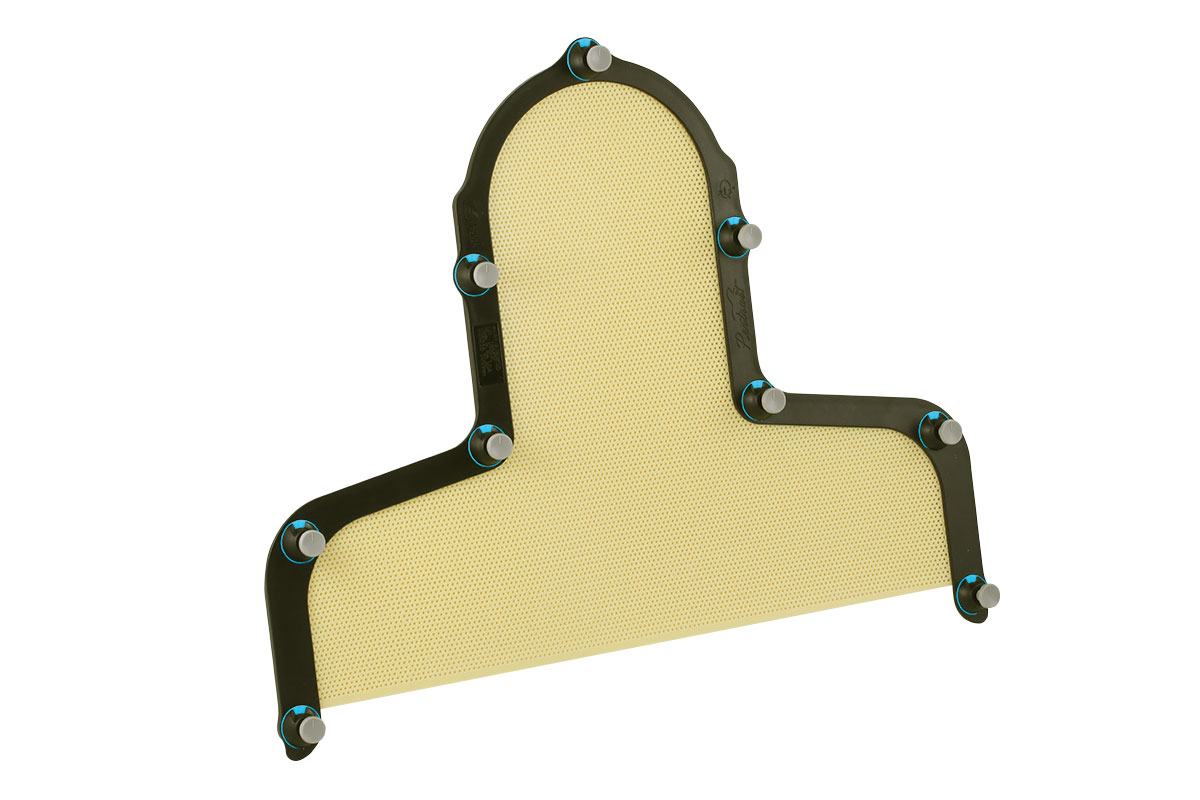

RT-A782KSD

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Fibreplast Type-S, Head & Shoulder, Standard Perf, 2.4 mm

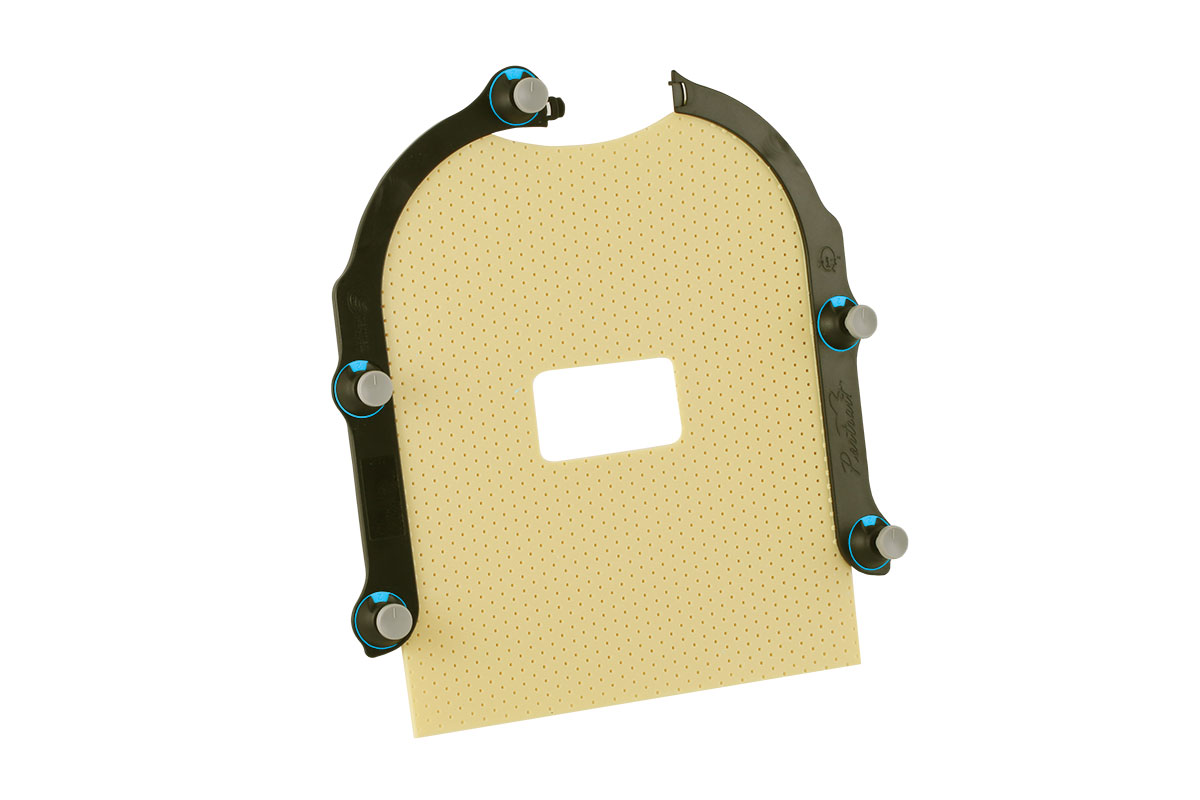

RT-A876KSDGLF

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Fibreplast Type-S thermoplastic with split frame, Head Only, Assure Open View, Micro Perf, 3.2 mm

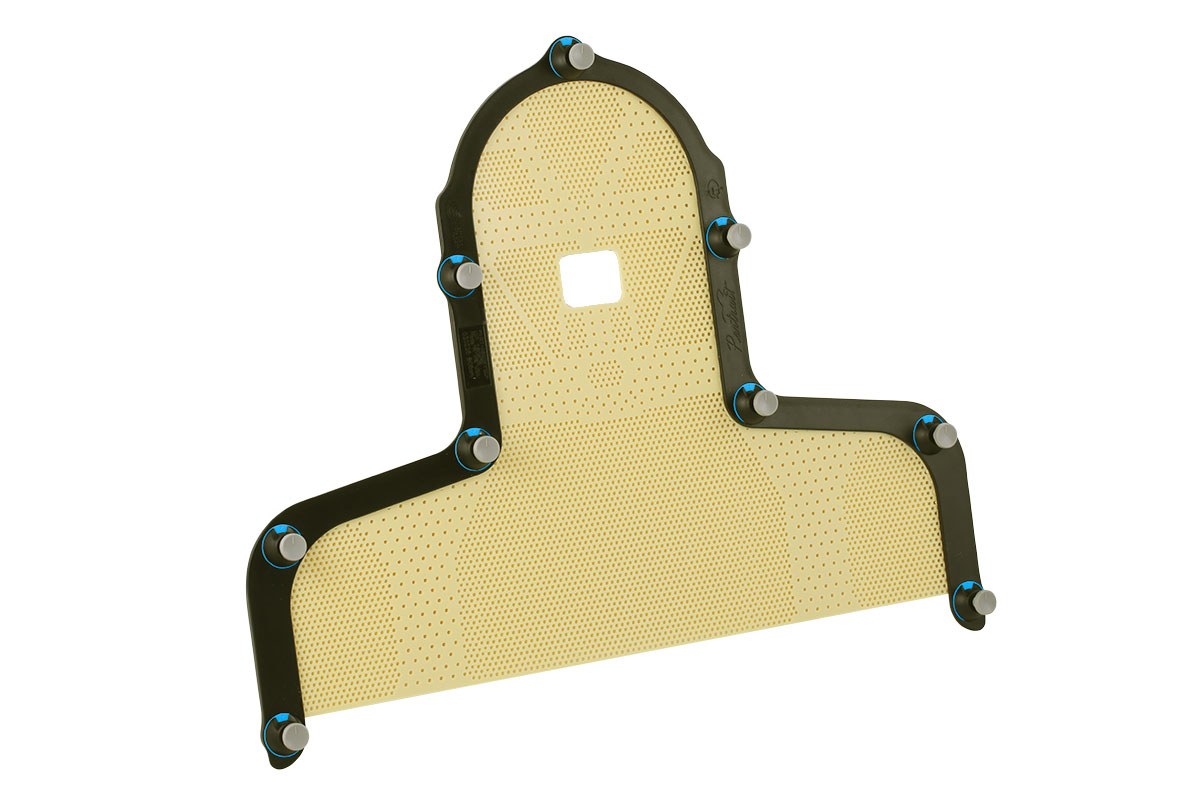

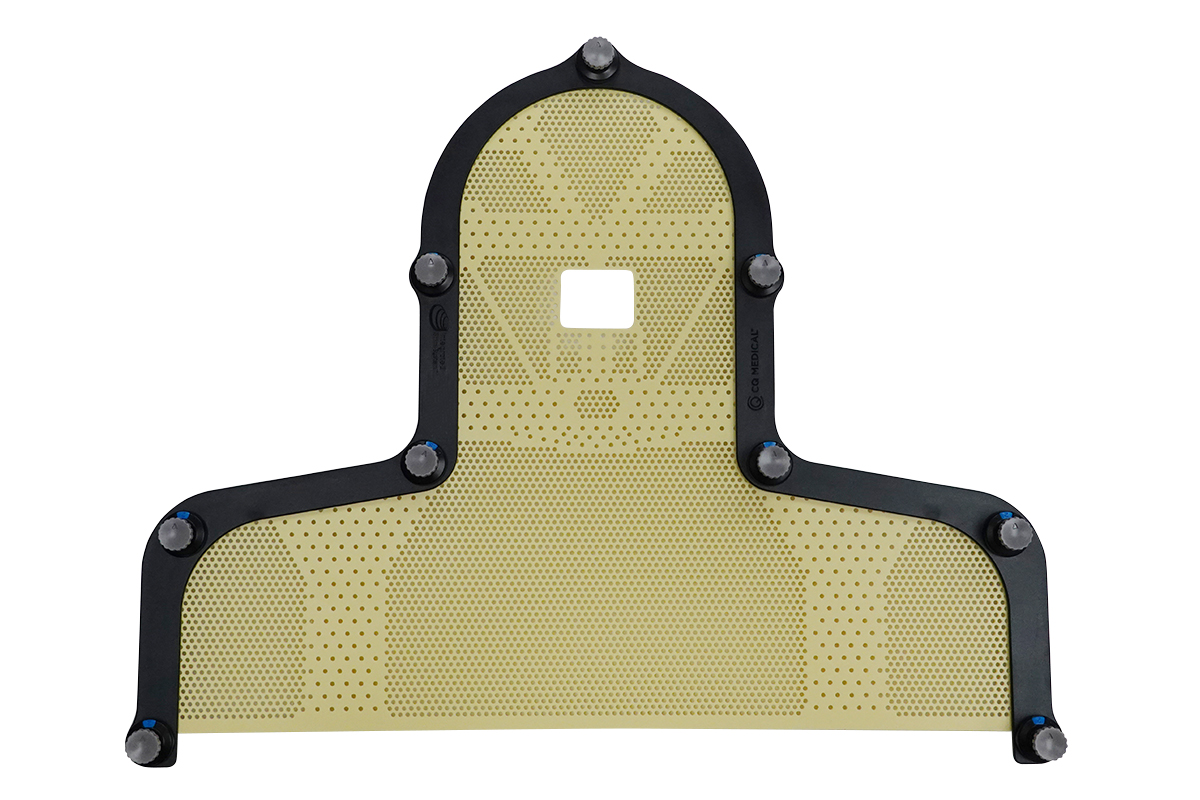

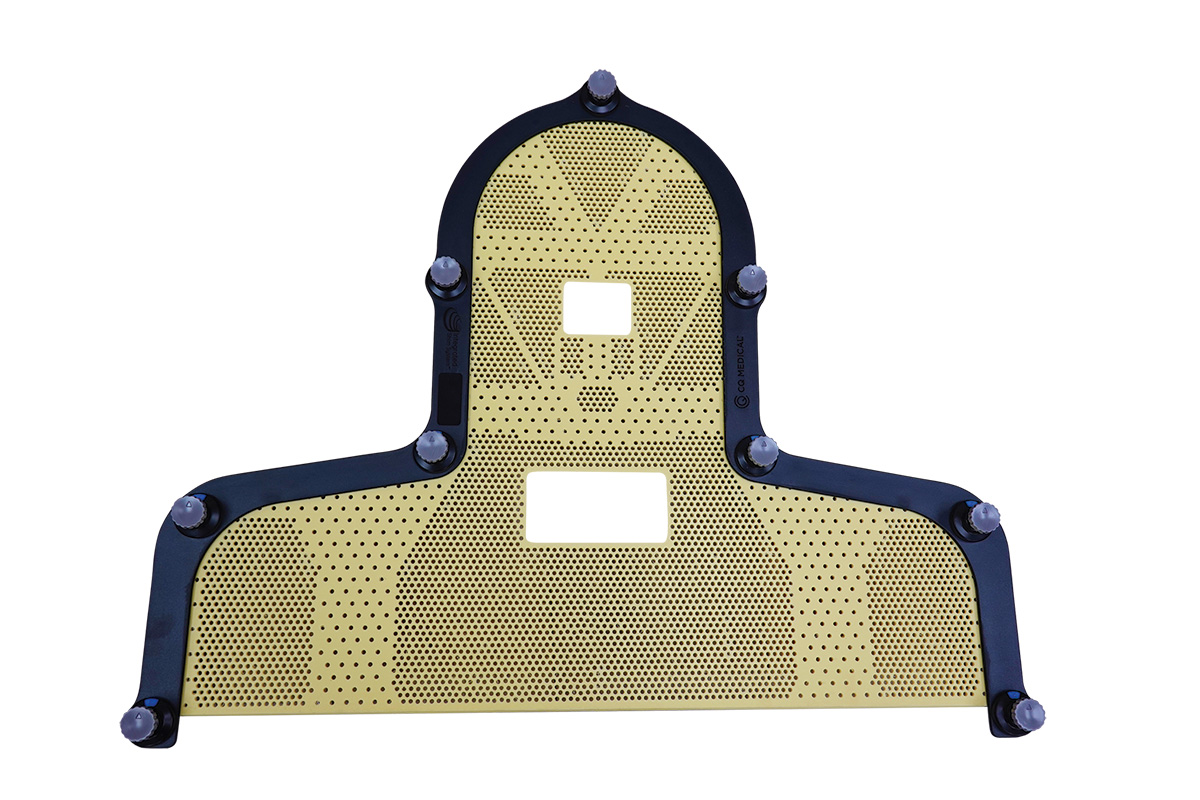

RT-A892KYSDF

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Fibreplast, Head & Shoulder, Assure Open View, Variable Perf, 3.2 mm
