Universal Couchtop Extensions

Rectangular Extension, 36.6 in. (92.9 cm)

Rectangular Extension, 53.1 in. (134.9 cm)

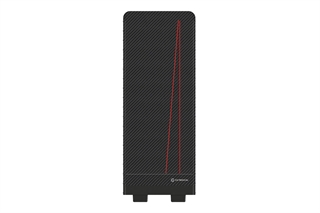

Rectangular Extension, 53.1 in. (134.9 cm), with embedded wires (shown in red)

Rectangular Extension, 64.9 in. (164.8 cm)

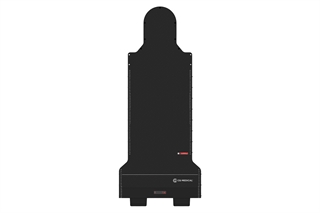

ProForm Extension, Pediatric, 48.7 in. (123.7 cm)

Rectangular Extensions
The shorter 36.6" extension helps manage overall couchtop length when extending overlays past the end of the couch. The 53.1" extension with embedded wires provides additional verification to ensure the patient is correctly aligned under LINAC isocenter relative to table position.

Grid Extension
Helps minimize surface dose and skin reactions.

Type-S Extensions
Allows for direct attachment of Solstice SRS and Solstat Immobilization Systems and all Type-S Thermoplastics, including the ClearVision open face mask designed for use with vision/camera systems. 49.1" and 53.1" Extensions do not have a central Vac-Lok point, therefore provides a larger unobstructed treatment region.

Posifix Extensions
Allows for direct attachment of Solstice SRS and Solstat Immobilization Systems and Posifix Thermoplastics.

ProForm Extensions
Designed for the unique requirements of proton therapy. May also be used for photon treatment. For more information, visit ProForm Head & Neck System.

*Universal Couchtop Long Extensions have been validated on TrueBeam, VitalBeam & Edge. CQ Medical positioning and immobilization devices have not been validated with TrueBeam, VitalBeam or Edge and Varian is not liable for use of these products. Universal Couchtop has not been validated on HyperArc.

Find a Product That Fits Your Needs

Extension Type	Length	Special Features	Includes	Validated on TrueBeam, VitalBeam, and Edge*
Rectangular	36.6 in (92.9 cm)	Short		No
Rectangular	53.1 in (134.9 cm)	Standard Profile		Yes
Rectangular	53.1 in (134.9 cm)	Embedded Wires		Yes
Rectangular	64.9 in (164.8 cm)	CT Compatible		No
Rectangular	64.9 in (164.8 cm)	Square Profile		No
Grid	53.1 in (134.9 cm)	-		Yes
Type-S	39.1 in (99.3 cm)	-		No
Type-S	49.1 in (124.7 cm)	Standard Profile		Yes
Type-S	53.1 in (134.9 cm)	-		No
Posifix	39.1 in (99.3 cm)	-		No
Posifix	49.1 in (124.7 cm)	-		Yes
ProForm	53.9 in (136.9 cm)	-	ProForm Cushion GuideUCT Patient Handles	No
ProForm	64.9 in (164.8 cm)	-	ProForm Cushion GuideUCT Patient Handles	No
ProForm	48.7 in (123.7 cm)	Pediatric	ProForm Cushion GuideUCT Patient Handles	No

MTIL6669

Rectangular Extension, 36.6 in. (92.9 cm), helps manage overall couchtop length when extending overlays past the end of the couch.

MTIL6660

Rectangular Extension, 53.1 in. (134.9 cm), Standard Extension

MTIL6661

Rectangular Extension, 53.1 in. (134.9 cm), with Embedded Wires provides additional verification to ensure the patient is correctly aligned under LINAC isocenter relative to table position.

MTIL6676

Rectangular Extension, 64.9 in. (164.8 cm), CT

MTIL6673

Rectangular Extension, 64.9 in. (164.8 cm), square profile

MTIL6663

MTIL6665

Type-S Extension, 39.1 in. (99.3 cm)

MTIL6670

Type-S Extension, 49.1 in. (124.7 cm)

MTIL6664

Type-S Extension, 53.1 in. (134.9 cm)

MTIL6666

Allows for direct attachment of Solstice SRS and Solstat Immobilization Systems and Posifix Thermoplastics and trUpoint ARCH SRS/SRT System. 39.1" (99.3 cm)

MTIL6672

Universal Couchtop Posifix Extension, 49.1 in. (124.7 cm)*

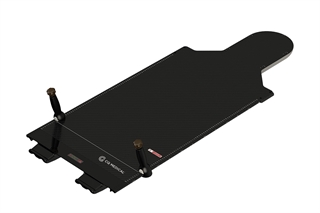

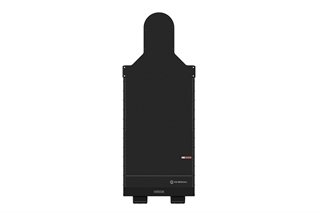

MTIL6675K

Universal Couchtop ProForm Head & Neck Extension, 53.9" (136.9 cm), includes ProForm Cushion Guide and Patient Handles.
