Encompass SRS Immobilization System

Highly rigid, non-invasive immobilization device designed for precisely targeted treatment to the brain, head & neck.

Schedule a Demo

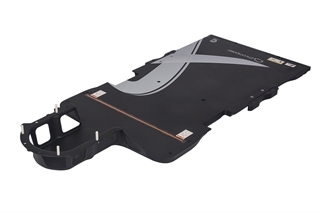

Encompass SRS Standalone Device compatible with bridges

Features

Immobilization for treatment of multiple lesions with a single isocenter
High-precision immobilization with submillimetric accuacy for stereotactic radiosurgery, including trigeminal neuralgia
Integrated Shim System optimizes workflow efficiencies
Open view thermoplastic can reduce patient anxiety and allows for intra-fraction positioning verification utilizing optical tracking systems
Submillimetric immobilization with or without optional IntegraBite
MR Version available

Integrated Shim

Innovative Integrated Shim allows independent height adjustment at each pin, providing completely customizable immobilization. Each Integrated Shim can be adjusted in discrete 0.5 mm increments, with a total range of 4 mm.

• Adjusting shim height is as easy as simply rotating the pin
• Eliminates the need for mask removal to adjust shim height
• Better workflow and instant setup feedback

Integra Bite

• Decreased head and neck rotation, flexion, and extension
• Repeatable positioning
• Simple, streamlined design makes application and insertion easy

Encompass SRS Fibreplast Masks

Made from the most rigid thermoplastic material available,
providing anterior and posterior cranial support.

Included Accessories

E0 SRS Headrest and Hand Grip Array included with all Encompass Devices.

Find a Product That Fits Your Needs

Add to Quote		Product	Description
			Encompass SRS Standalone Device (includes E0 Headrest & Hand Grip Array)
			Encompass SRS Standalone Device compatible with Bridges (includes E0 SRS Headrest & Hand Grip Array)
			kVue Encompass SRS Insert (includes E0 SRS Headrest & Hand Grip Array)

RT-4600-01

The Encompass SRS MR Immobilization System is a highly advanced, non-invasive immobilization solution designed for precisely targeted brain, head and neck treatments. The innovative Integrated Shim System provides a 4 mm range of height adjustment utilizing discrete 0.5 mm increments to optimize immobilization.

Device Length: 1358 mm
Handling Weight: 5.5 kg (12 lb)
Weight Limit: 249 kg (550 lb), Uniformly Distributed. Load at maximum cantilever position indicated on device.

RT-4600-02

The Encompass SRS Immobilization System is a highly advanced, non-invasive immobilization solution designed for precisely targeted brain, head and neck treatments. The innovative Integrated Shim System provides a 4 mm range of height adjustment utilizing discrete 0.5 mm increments to optimize immobilization.

Device Length: 1311 mm
Handling Weight: 4.5 kg (10 lb)
Weight Limit: 249 kg (550 lb), Uniformly Distributed. Load at maximum cantilever position indicated on device.

RT-4600KV-01

A highly specialized, non-invasive immobilization solution for stereotactic radiosurgery. Encompass is validated for use with Varian HyperArc.

Device Length: 1358 mm
Handling Weight: 5 kg (11 lb)
Weight Limit: 249 kg (550 lb), Uniformly Distributed. Load at maximum cantilever position indicated on device.
