TotalRT Platform

The TotalRT All in One Platform is designed to quickly adapt our positioning and immobilization solutions to your clinical setup and treatment needs. The platform is indexable on a couchtop, creating an affordable all in one solution and allowing seamless transition between patient treatments.

Schedule a Demo Contact Us

Features

Easily indexable on CT, MR and photon treatment tables with two Lok-Bars
Large, artifact-free and homogeneous treatment area for precise dose delivery, including hypofractionation
Repeatable positioning of positioning and immobilization devices, even between treatment rooms
A single therapist can carry and index to couchtop
Wall storage device allows effective way to store and protect the platform
Lightweight: 7.3 kg / 16 lbs
Dimensions (cm): 201.3 (L) x 61.9 (W) x 3.5 (H)
Platform is MR Safe

Find a Product That Fits Your Needs

Add to Quote		Product	Description
			Type-S Lok-Bar
			ThermFix Base Package Includes: Superior Bar, Inferior Bar, Spacing Tool (for breast, thorax, abdomen, hip and pelvic treatment with no central docking)
			ThermFix Pelvic Package Includes: Superior Bar, Hip & Pelvic Bar, Spacing Tool (for hip and pelvic treatment with central docking)
			ThermFix Complete Package Includes: Superior Bar, Inferior Bar, Hip & Pelvic Bar, Spacing Tool

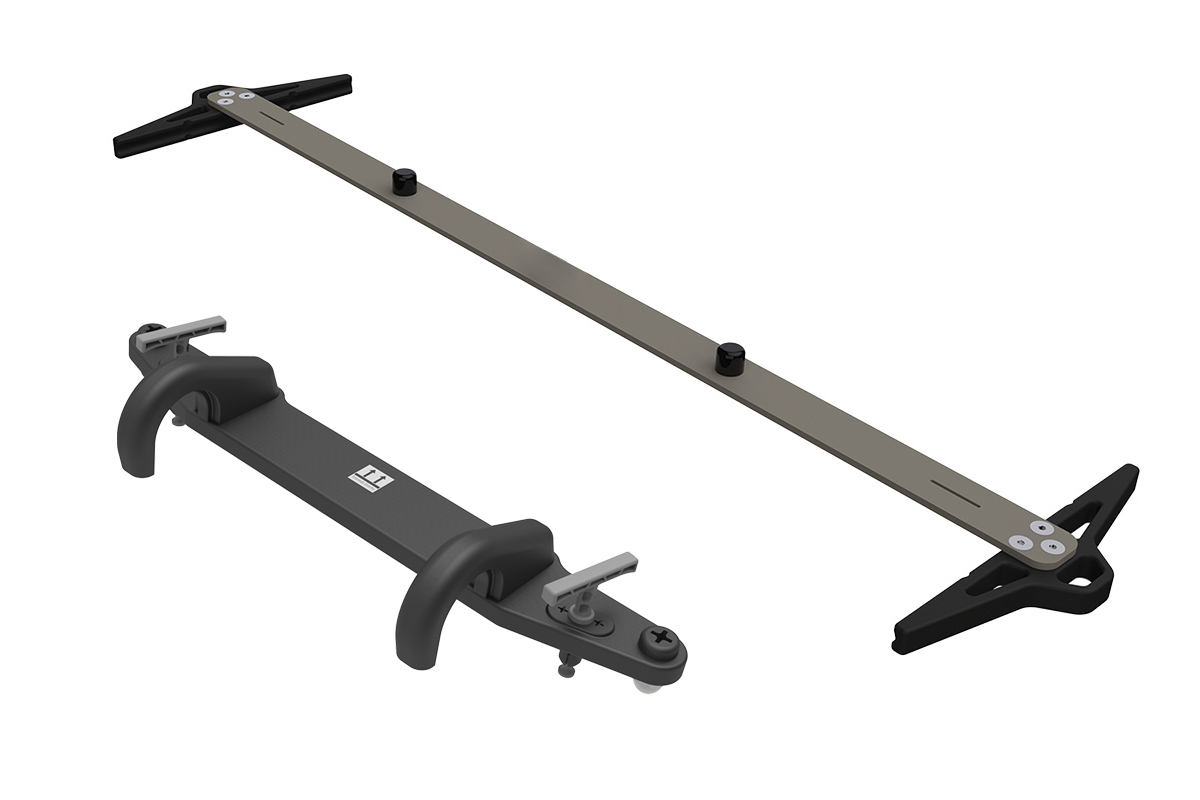

			Evolve Type-S Locating Kit - Includes Evolve Type-S Locating Bar and Slide Guide Three-Pin Lok-Bar for indexing to Alta or TotalRT All in One

MTWBL001

The Type-S Lok-Bar allows Wing Boards, Monarch Overhead Arm Positioner and other positioning and immobilization devices to be indexed in the head & neck area on a Type-S Overlay or Extension, including the TotalRT All in One Platform.

THRMFX100

The ThermFix Immobilization System uses a single sheet of thermoplastic that forms over the breast, thorax, abdomen, hip, or pelvis to aid patient positioning and reproducibility. The ThermFix Bars easily attach and index to the TotalRT All in One Platform or Universal Couchtop and provide 1 cm indexing.

Includes: Superior Bar, Inferior Bar, Spacing Tool (for breast, thorax, abdomen, hip and pelvic treatment with no central docking).

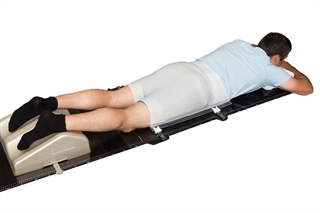

THRMFX101

The ThermFix Immobilization System uses a single sheet of thermoplastic that forms over the breast, thorax, abdomen, hip, or pelvis to aid patient positioning and reproducibility. The ThermFix Bars easily attach and index to the TotalRT All in One Platform or Universal Couchtop and provide 1 cm indexing.

Includes: Superior Bar, Hip & Pelvic Bar, Spacing Tool (for hip and pelvic treatment with central docking).

THRMFX102

The ThermFix Immobilization System uses a single sheet of thermoplastic that forms over the breast, thorax, abdomen, hip, or pelvis to aid patient positioning and reproducibility. The ThermFix Bars easily attach and index to the TotalRT All in One Platform or Universal Couchtop and provide 1 cm indexing.

Includes: Superior Bar, Inferior Bar, Hip & Pelvic Bar, Spacing Tool.
