kVue BoS Head & Neck System

The BoS system’s conformal shape provides optimal treatment beam angles and has been a standard for head & neck immobilization in proton therapy over the last 16 years.

BoS Inserts

kVue BoS inserts are specifically designed to meet the unique requirements of proton therapy for patient immobilization and beam transmission. The BoS device is engineered to rigidly support the patient without using a flat base that blocks the use of important proton beam angles.

The conformal shape is designed to minimize the distance between the patient and the field defining aperture, optimizing the beam proton penumbra.

kVue BoS inserts are available in two additional lengths. The shorter version which is required to treat vertex fields in some robotic couch setups and a longer version that is required to treat lower spinal fields on tall patients.

BoS Thermoplastics

The innovative 3D shape matches the contour of the BoS device, which is designed to meet the unique requirements of proton therapy for patient immobilization and beam transmission. These masks come in a variety of different options, allowing for head and neck as well as head and shoulder immobilization.

Find a Product That Fits Your Needs

Add to Quote		Product	Description
			kVue BoS Insert, Standard Length (1320 mm)
			kVue BoS Insert, Shorter Length to treat vertex fields in some robotic couch setups (1210 mm)
			kVue BoS Insert, Longer Length to treat lower spinal fields on tall patients (1580 mm)
			Fibreplast, Standard Perf, 26 cm wide, 3.2 mm (Qty 1, must purchase in multiples of 10)
			Fibreplast, Assure Open View, Micro Perf with Cranial Flap, 31 cm wide, 32 mm (Qty 1, must purchase in multiples of 5)
			Aquaplast RT, Standard Perf, 31 cm wide, 3.2 mm (Qty 1/must purchase in multiples of 10)

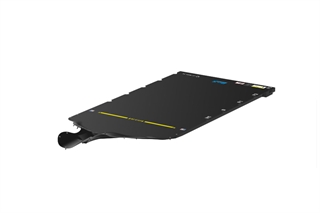

kVue BoS Insert, Standard Length (1320 mm)

RT-4535KV

Specifically designed to meet the unique requirements of proton therapy for patient immobilization and beam transmission. It is engineered to rigidly support the patient without using a flat base that blocks the use of proton beam angles.

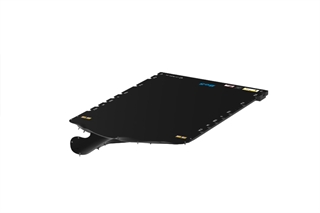

kVue BoS Insert, Shorter length (1210 mm)

RT-4535KV01

A shorter version of the kVue BoS insert is required to treat vertex fields in some robotic couch setups.

kVue BoS Insert, Longer Length (1580 mm)

RT-4535KV03

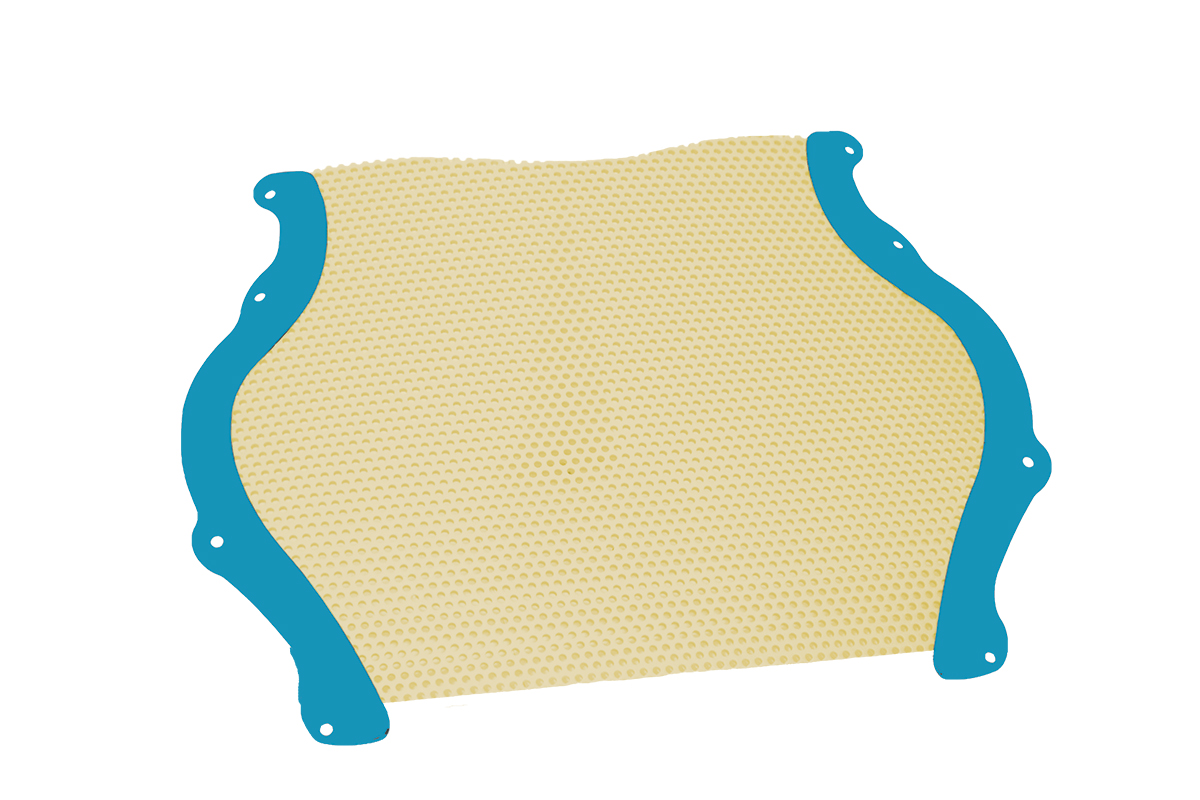

Fibreplast, Head & Neck, Standard Perf, 26 cm wide, 3.2 mm

RT-1882KBOS-DVS

The innovative 3D shape matches the contour of the BoS device, which is designed to meet the unique requirements of proton therapy for patient immobilization and beam transmission. These masks come in a variety of different options, allowing for head and neck as well as head and shoulder immobilization. Head and Neck, Fibreplast, Standard Perf, 26 cm wide

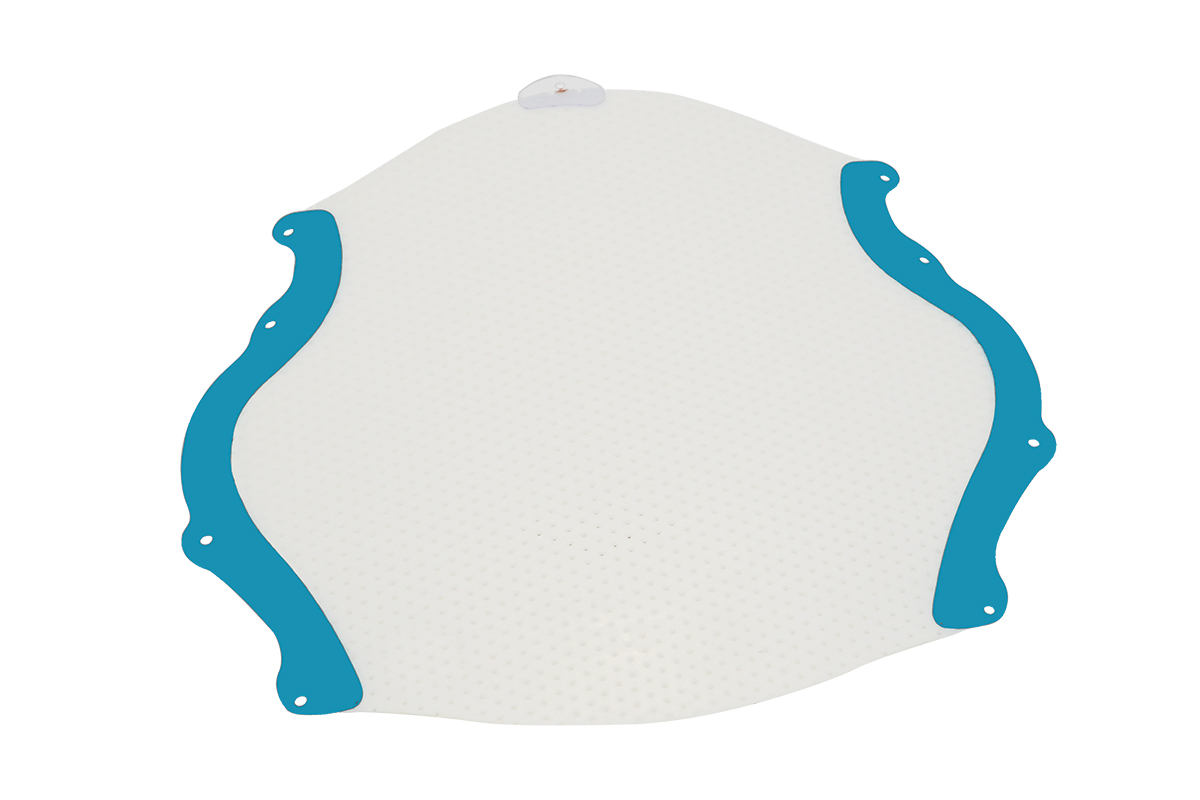

Fibreplast, Micro Perf with Cranial Flap, Head & Neck, 31 cm wide, 3.2 mm

RT-1878KBOS-D2LS

The innovative 3D shape matches the contour of the BoS device, which is designed to meet the unique requirements of proton therapy for patient immobilization and beam transmission. These masks come in a variety of different options, allowing for head and neck as well as head and shoulder immobilization. Head and Neck Fibreplast, Micro Perf with Cranial Flap, 31 cm wide

BoS Thermoplastic, Aquaplast RT, Head & Neck, Standard Perf, 31 cm wide, 3.2 mm

RT-1882BOS-DS

The innovative 3D shape matches the contour of the BoS device, which is designed to meet the unique requirements of proton therapy for patient immobilization and beam transmission. These masks come in a variety of different options, allowing for head and neck as well as head and shoulder immobilization. Head and Neck Aquaplast RT, Standard Perf, 31 cm wide
