Type-S Overlays

Extends off the end of the treatment couch. Compatible with Head Only and Head, Neck & Shoulder thermoplastics.

iBEAM Overlay Adapter
Created for the Medical Intelligence iBEAM and iBEAM EVO couchtops. The overlay is cantilevered, providing minimal attenuation in the area of treatment.

Overlay Board
Extends off the end of the treatment couch. An optional reloadable head, neck and shoulders frame for Type-S thermoplastics is available (20CFHNSUB1P).

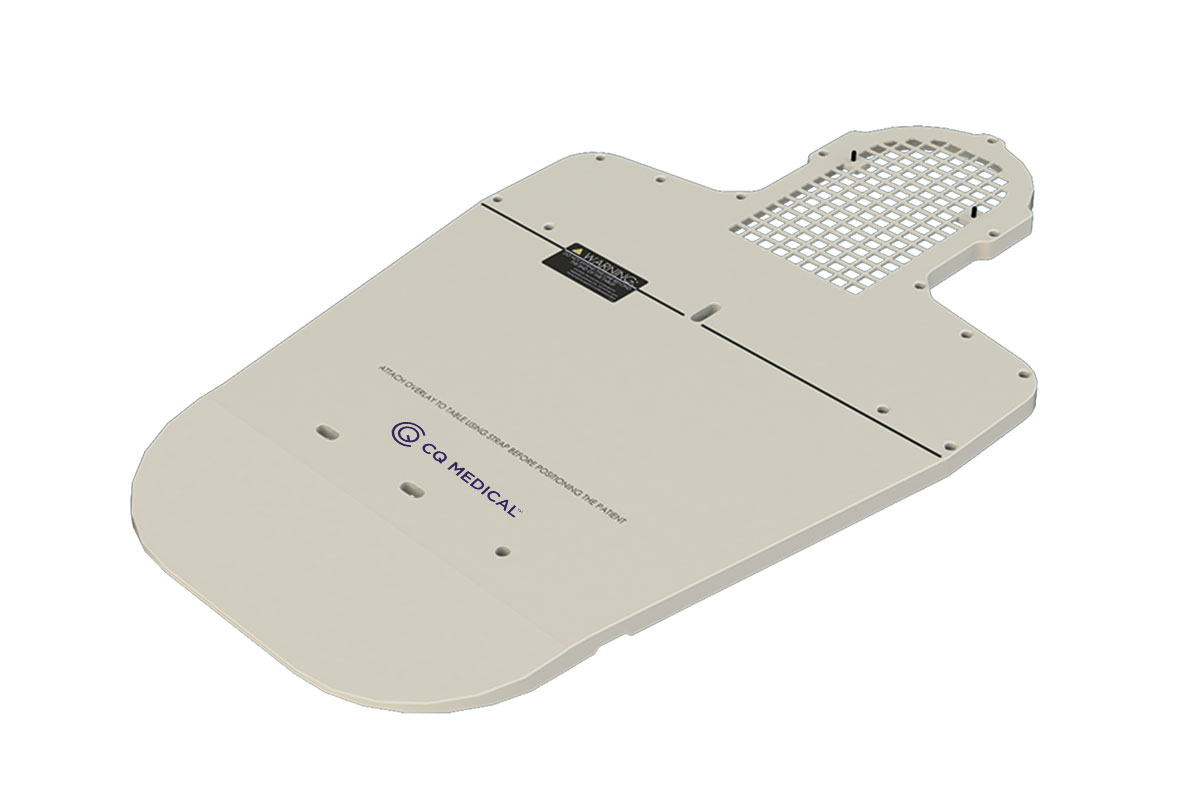

MRI Type-S Overlay
Made of fiberglass with a foam core for use in MR environments. The MRI Overlay is lightweight and three-pin indexable.

Fixator Shoulder Suppression System
The Fixator Shoulder Suppression System is designed to enhance the benefits of the Type-S system. The Fixator extends off the couchtop and includes adjustable padded positioners to gently cup the patient’s shoulders, capturing and positioning them out of the treatment field. Indexed nomenclature allows for easily recorded shoulder repositioning. Type-S Head Only IMRT Reinforced Thermoplastic masks are recommended for use with this system.

Find a Product That Fits Your Needs

Add to Quote		Product	Description
			ABS Reloadable Type-S Frame Only (for use with Overlay Board)
			Fixator Shoulder Cup, Qty 1
			Fixator Shoulder Suppression System with Shoulder Cups (x2)
			iBEAM Overlay Adapter, Type-S
			MRI Type-S Overlay
			MRI Type-S Overlay, Narrow
			Overlay Board (with Vac-Lok indexing hole)
			Overlay Board (no Vac-Lok indexing hole for larger unobstructed treatment region)

20CFHNSUB1P

ABS Reloadable Type-S Frame Only (for use with Overlay Board)

MTCFHN006SUB6

The Fixator Shoulder Suppression System is designed to enhance the benefits of the Type-S system. The Fixator extends off the couchtop and includes adjustable padded positioners to gently cup the patient’s shoulders, capturing and positioning them out of the treatment field.

MTCFHN006

The Fixator Shoulder Suppression System is designed to enhance the benefits of the Type-S System. The Fixator extends off the couchtop and includes adjustable padded positioners to gently cup the patient’s shoulders, capturing and positioning them out of the treatment field.

108073

Created for the Medical Intelligence iBEAM and iBEAM EVO couchtops. The overlay is cantilevered, providing minimal attenuation in the area of treatment.

MTMRHNTYPES

Type-S Overlay, MRI compatible, 105.4 x 60.71 x 2.2 cm, Includes Positioning Strap and Head, Neck and Shoulders ABS Frame.

MTMRHNPN

Type-S Overlay, narrow, MRI compatible, 105.4 x 46.10 x 2.2 cm, Includes Positioning Strap and Head Only ABS Frame.

20CFHNSUB2

Overlay Board (with Vac-Lok indexing hole). Extends off the end of the treatment couch.

Type-S Overlay Board (no Vac-Lok indexing hole for larger unobstructed treatment region)

20CFHNSUB7

Extends off the end of the treatment couch. An optional reloadable head, neck and shoulders frame for Type-S thermoplastics is available. Overlay (no Vac-Lok indexing hole for larger unobstructed treatment region)
